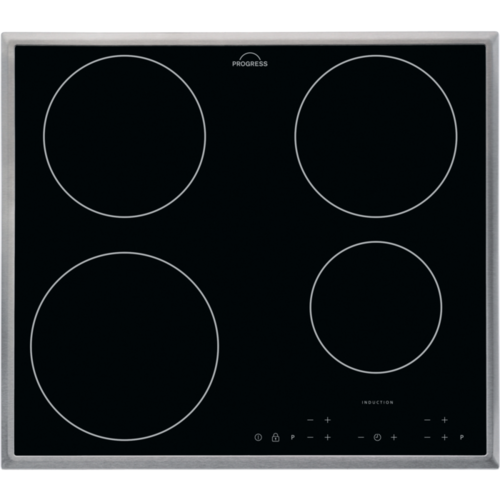

Induction hob PAI6001E

Tech specification

Installation Diagram
Key specification
  • Design: Independent hob
  • EAN number: 7332543649716
  • Installation height (mm): 46
  • Appliance width (mm): 576
  • Appliance depth (mm): 506
  • Aperture size, width (mm): 560
  • Aperture size, depth (mm): 490
Specification
  • Independent hob with controls
  • Cooking function: induction
  • Stainless steel frame
  • Electronic touch controls with the digital display not only make selection easier but also offer a larger choice of power levels.
  • Power function for each cooking zone
  • Electronic displays for 4 cooking zones
  • Auto heat up function
  • Automatic pan recognition
  • Timer
  • 4-stage residual heat indicator
  • Child lock function
  • Control lock function
  • Power-dependent automatic switch-off
  • SlimFit design – for installation in any worktop thickness: min. 12 mm if installed at the same time as a drawer, or min. 28 mm above a Progress oven/cooker. Installation of protection panel not required.
  • The ceramic surface makes it easy to clean.
Performance
  • Type of hob: Induction cooking zones
  • Cooking zone front left, power and diameter: 2300/3700W/210mm
  • Cooking zone back left, power and diameter: 1800W/180mm
  • Cooking zone front right, power and diameter: 1400/2500W/145mm
  • Cooking zone back right, power and diameter: 1800W/180mm
Installation
  • Design: Independent hob
  • Installation height (mm): 46
  • Appliance width (mm): 576
  • Appliance depth (mm): 506
  • Aperture size, width (mm): 560
  • Aperture size, depth (mm): 490
  • Colour: Black
Energy
  • Connected load (W): 7350
