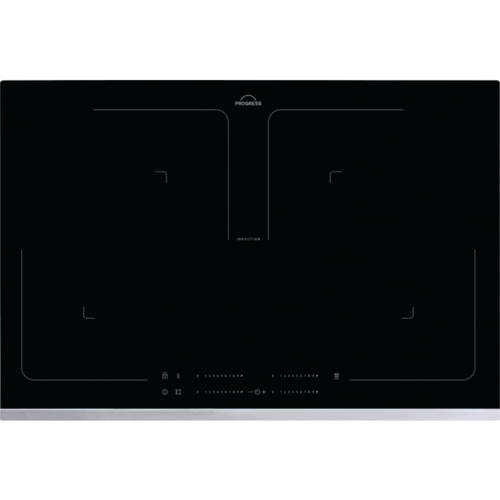

Induction hob PAI8205E

Tech specification

Installation Diagram
Key specification
  • Design: Independent hob
  • PNC: 949 594 502
  • EAN number: 7332543709632
  • Installation height (mm): 44
  • Appliance width (mm): 780
  • Appliance depth (mm): 520
  • Aperture size, width (mm): 750
Specification
  • Independent hob with controls
  • Cooking function: induction
  • Frameless, Special Design
  • Frameless for flush-mounted installation
  • Cooking zone operation via DirectControl
  • Power function for each cooking zone
  • Bridge function – combines two adjacent cooking zones into one
  • Electronic displays for 4 cooking zones
  • Auto heat up function
  • Automatic pan recognition
  • Timer
  • Input confirmed by acoustic signal
  • Child lock function
  • Control lock function
  • Power-dependent automatic switch-off
  • SlimFit design – for installation in any worktop thickness: min. 12 mm if installed at the same time as a drawer, or min. 28 mm above a Progress oven/cooker. Installation of protection panel not required.
  • The ceramic surface makes it easy to clean.
Performance
  • Type of hob: Induction cooking zones
  • Cooking zone front left, power and diameter: 2300/3200W/210mm
  • Cooking zone back left, power and diameter: 2300/3200W/210mm
  • Cooking zone front right, power and diameter: 2300/3200W/210mm
  • Cooking zone back right, power and diameter: 2300/3200W/210mm
Installation
  • Design: Independent hob
  • Installation height (mm): 44
  • Appliance width (mm): 780
  • Appliance depth (mm): 520
  • Aperture size, width (mm): 750
  • Aperture size, depth (mm): 490
  • Colour: Black
Energy
  • Connected load (W): 7350
Other
